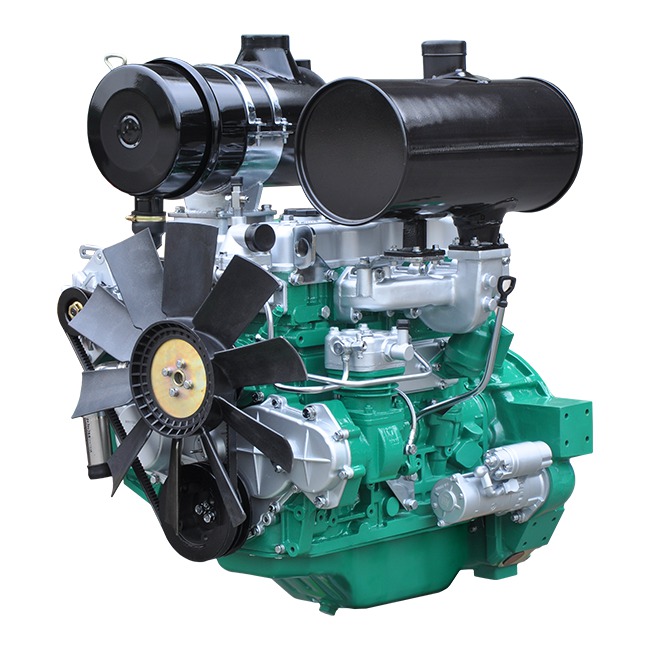

Motor de vehículo EURO I
| Model | 4DX11-80 | 4DX11-90 | 4DX21-96 |
| Type | 4-cylinder in-line, direct injection, water cooling | ||
| Bore×Stroke（mm） | 100×100 | 100×118 | 102×118 |
| Valves/cylinder | 2 | ||
| Displacement (L) | 3.142 | 3.707 | 3.857 |
| Rated power | 58.8 | 66.2 | 70.6 |
| Rated speed (r/min) | 3200 | ||
| Net power/speed（kW/r/min） | 54 | 62 | 66 |
| Maximum torque (Nm) | 201 | 225 | 245 |
| Maximum torque speed(r/min) | 2000 ~ 2200 | ||
| Fuel consumption (g/kW·h) | 238 | ||
| Smoke (m-1) | ≤ 3.0 | ||
| Noise dB(A) | ≤ 95.5 | ||
| Emission Compliant（TAS） | EURO Ⅰ | ||
| Net Mass (kg) | 350 | ||
| Length×Width×Height（mm) | 795×680×825 | ||
