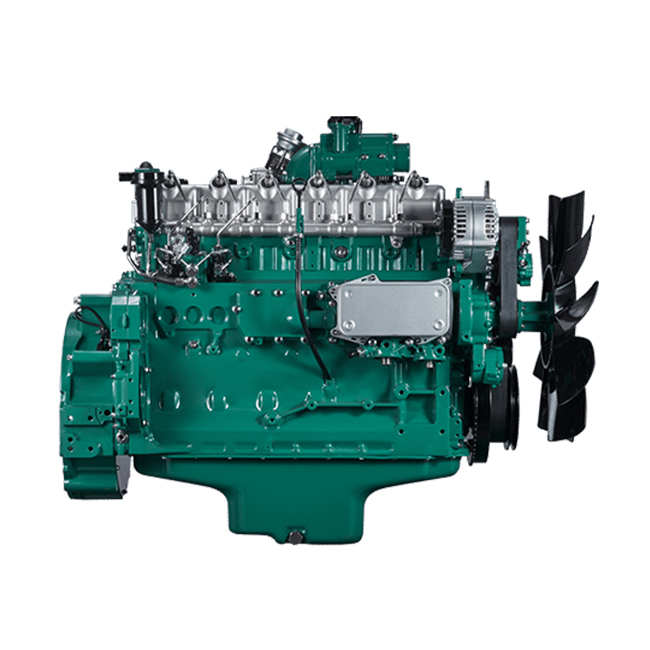

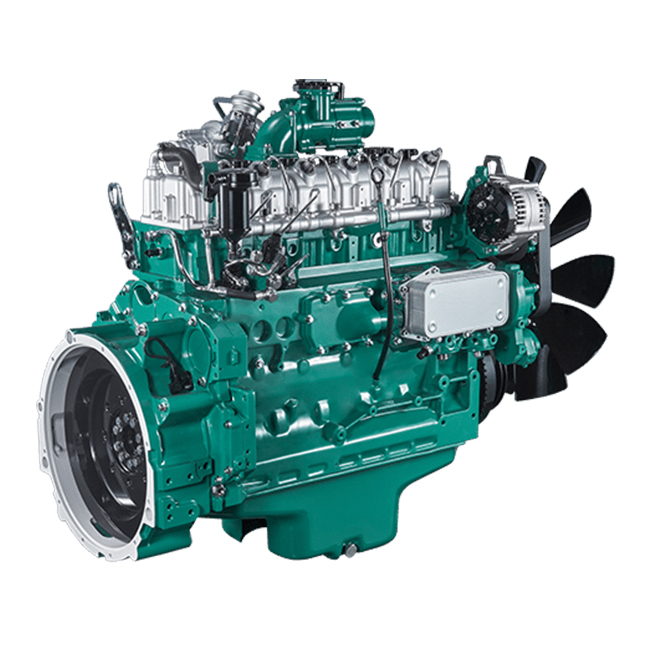

CA6DH1 series diesel engine

CA6DH1 cites advanced German design concepts, adopts four-valve, high-pressure common rail, and gas-driven after-treatment technologies, and has the advantages of good reliability, small size, light weight, and low fuel consumption.

The upgraded CA6DH1 product is a high-end diesel engine tailored for medium and heavy commercial vehicles, and is suitable for commercial vehicles such as cargo and dumpers with a wheelbase of 5.2~7.5m.

Consultar Ahora Siguiente Producto

ESPECIFICACIÓN CARACTERÍSTICAS TÉCNICAS

The main technical parameters

Five characteristics of high possibility, low fuel consumption, high efficiency, low maintenance, and high power are industry-leading

CA6DH1 series diesel engine

Project	Model	CA6DH1-22E6	CA6DH1-24E6	CAGDH1-26E6
Displacement	L	5.7
Rated power/speed	Ps/r/min	220/2500	240/2500	260/2500
Max torque/speed	N·m/r/min	850/1200-1800	900/1200-1800	1000/1200-1800
External Characteristics Minimum Fuel Consumption Rate	g/kW·h	195
Noise	dB	≤94
Emission route		EGR+DOC+DPF+SCR

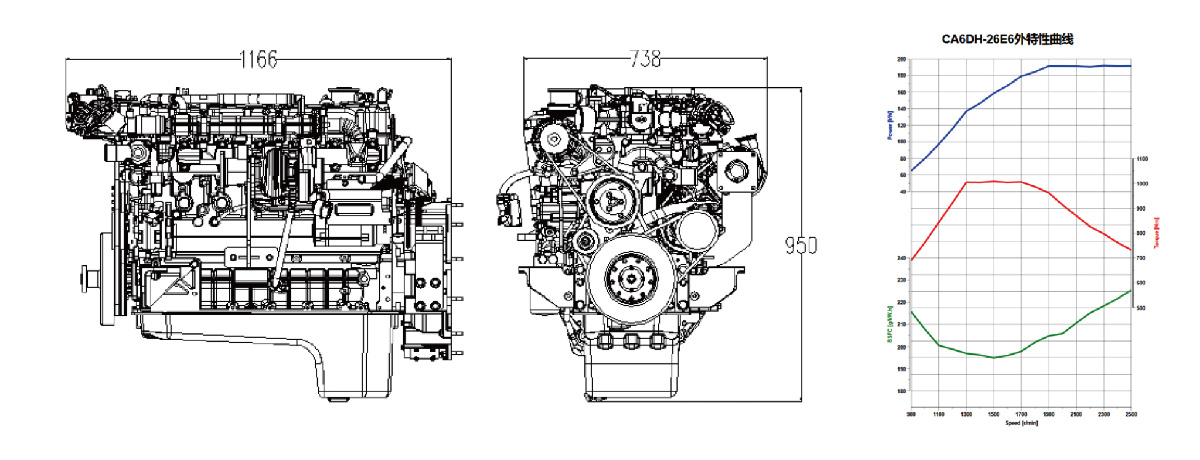

Overall Dimensions (length, width and height)	mm	1106×797×919
Engine mass (excluding aftertreatment)	kg	570

Quality Assurance

High-strength alloy cast iron cylinder head, double-layer water jacket, good cooling effect.

Spiral honed cylinder barrel and DLC-coated piston rings have good wear resistance and improve service life.

Surging power

High-efficiency supercharging technology, large torque at low speed, and unique driving calibration technology, the vehicle accelerates quickly.

Low-speed torque is 15%-20% higher than similar domestic products, and the maximum torque covers 1200-1700r/min. It is easier to start and does not shift gears when going uphill.

Energy saving and low consumption

2000bar high pressure common rail system, excellent atomization, even mixing, full combustion, better economy and more money saving.

Comfortable and low noise

Optimized design of cylinder block and head, good rigidity and low vibration.

Optimized combustion pressure rise rate, soft combustion, low noise, plastic oil pan, good vibration isolation and noise reduction.

Hassle-free use

36 months unlimited mileage warranty. Spare reserves are sufficient, and the average service radius is less than 30 kilometers.
