Motor de vehículo EURO IV

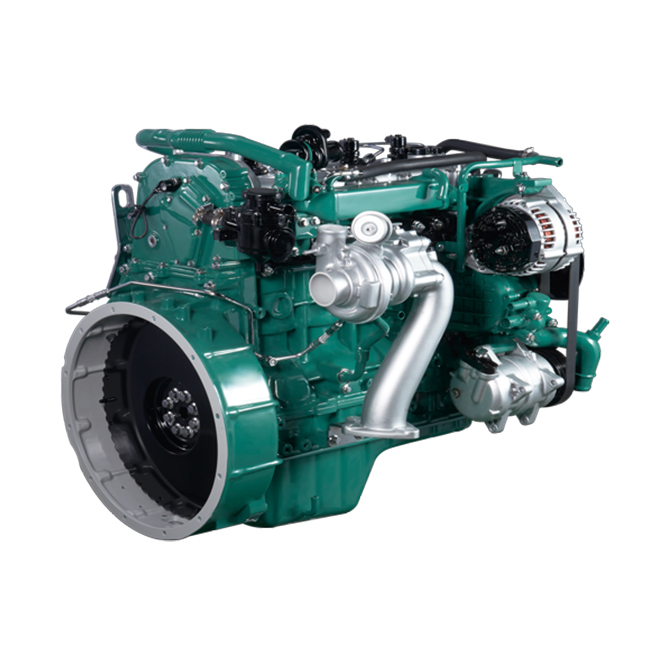

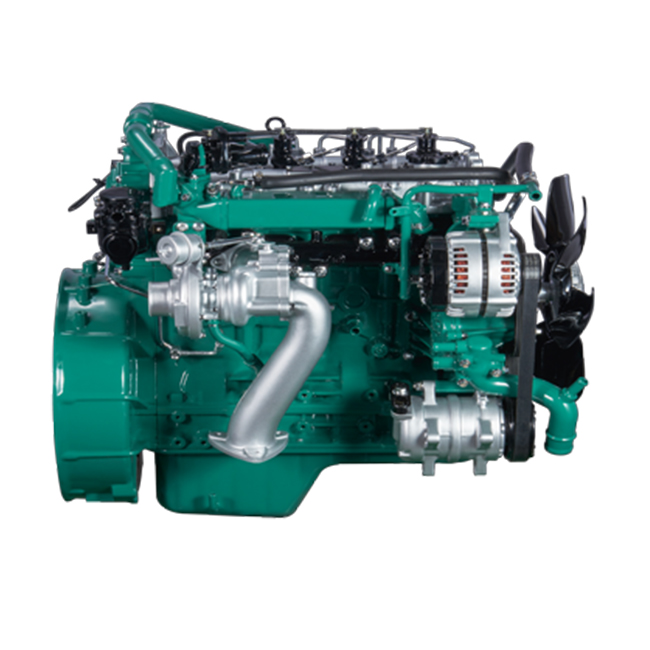

CA4DD series diesel engine

CA4DD is an internationally advanced high-end diesel engine independently developed by FAW Technical Center in combination with European cutting-edge design concepts and strict verification standards.

The market is positioned as a light-duty diesel engine, which is mainly suitable for 6.6-8m school bus and 6.6-7.6m light passenger.

Compartimiento:

The main technical parameters

Five characteristics of high possibility, low fuel consumption, high efficiency, low maintenance, and high power are industry-leading


CA4DD series diesel engine


Project

Model

CA4DD1-15E6CA4DD1-16E6
DisplacementL3
Rated power/speedPs/r/min150/3000160/3000
Max torque/speedN·m/r/min400/1200~2000500/1100~2600
External Characteristics Minimum Fuel Consumption Rateg/kW·h200
NoisedB≤93
Emission routeEGR+DOC+DPF+SCR
Overall Dimensions (length, width and height)mm691x655×736
Engine mass (excluding aftertreatment)kg257

Powerful

The domestic 3L engine has the largest torque, and the maximum torque covers a large speed range. The camshaft directly drives the rocker arm to respond quickly, accelerates well, starts more lightly, and does not shift gears uphill.


Reliable and durable

Trapezoidal frame structure, Tsubaki chain, Mahle piston has high strength, good wear resistance, low wear, longer service life of the whole machine, more attendance, and more income.


Economical and fuel-efficient

Double overhead camshaft, 2000bar high pressure common rail system, sufficient intake air, more thorough atomization and fine combustion, saving fuel and saving money.


Comfortable and worry-free

Chain drive, hydraulic tappet drive valve mechanism, lifetime maintenance-free, saving time and worry. Integrated gas-driven SCR, extremely streamlined, no urea pump and no separate control unit, low failure rate, high attendance rate, and more profits.


Hassle-free use

36-month unlimited mileage warranty, 60,000 km long oil change, leading domestically.
