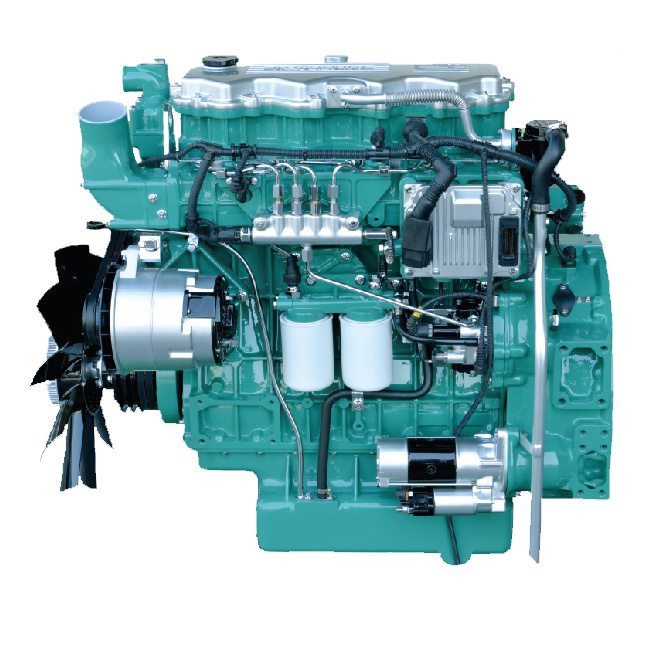

Motor de vehículo EURO V
| Model | CA4DLD-13E5 | CA4DLD-15E5 | CA4DLD-17E5 | CA4DLDZ-18E5 |
| Type | 4-cylinder in-line, direct injection, turbocharged&intercooling, common rail | |||
| Bore×Stroke（mm） | 108×120 | |||
| Valves/cylinder | 4 | |||
| Displacement (L) | 4.4 | |||
| Rated power/rated speed (kW/r/min) | 98/2500 | 105/2500 | 112/2500 | 127/2500 |
| Net power/speed (kW/r/min) | 96/2500 | 103/2500 | 110/2500 | 125/2500 |
| Maximum torque (Nm) | 450 | 450 | 530 | 600 |
| Maximum torque speed(r/min) | 1300～1700 | |||
| Fuel consumption（g/kW·h） | 200 | |||
| Noise dB(A) | ≤94 | |||
| Technical Route | SCR/ EGR+VNT/FGT+POC | |||
| Emission Compliant (TAS) | EURO V | |||
| Net Mass（kg） | 560 | |||
| Length×Width×Height（mm） | 992×780×960 | |||
