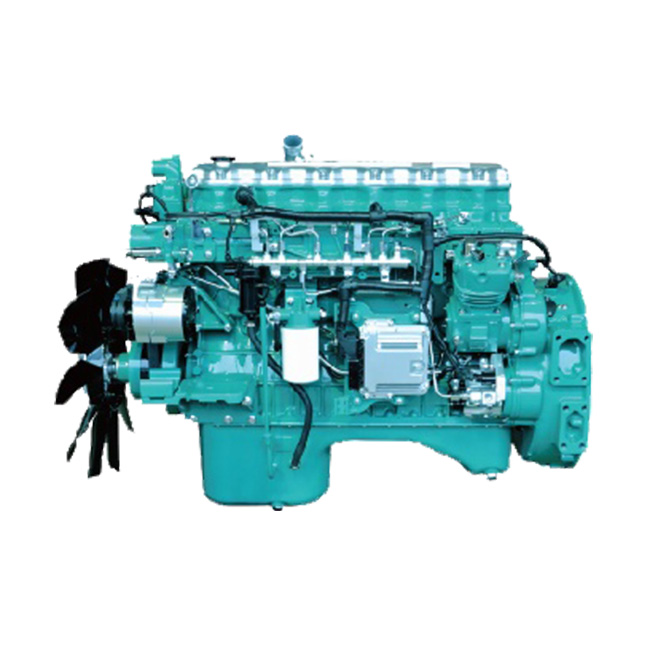

Motor de vehículo EURO V
| Model | CA6DLD-18E5 | CA6DLD-20E5 | CA6DLD-22E5 | CA6DLD-24E5 | CA6DLD-26E5 |
| Type | 6-cylinder in-line, direct injection, turbocharged&intercooling, common rail | ||||
| Bore×Stroke (mm) | 108×120 | ||||
| Valves/cylinder | 4 | ||||
| Displacement (L) | 6.6 | ||||
| Rated power (kW) | 134 | 149 | 164 | 179 | 194 |
| Net power (kW) | 132 | 147 | 162 | 177 | 192 |
| Rated speed (r/min) | 2300 | ||||
| Maximum torque (Nm) | 680 | 780 | 860 | 940 | 1050 |
| Maximum torque speed (r/min) | 1300-1700 | ||||
| Fuel consumption (g/kW·h) | 196 | ||||
| Noise dB (A) | ≤ 96 | ||||
| Technical Route | SCR | ||||
| Emission Compliant (TAS) | EURO V | ||||
| Net Mass (kg) | 740 | ||||
| Length×Width×Height (mm) | 992×720×955 | ||||
