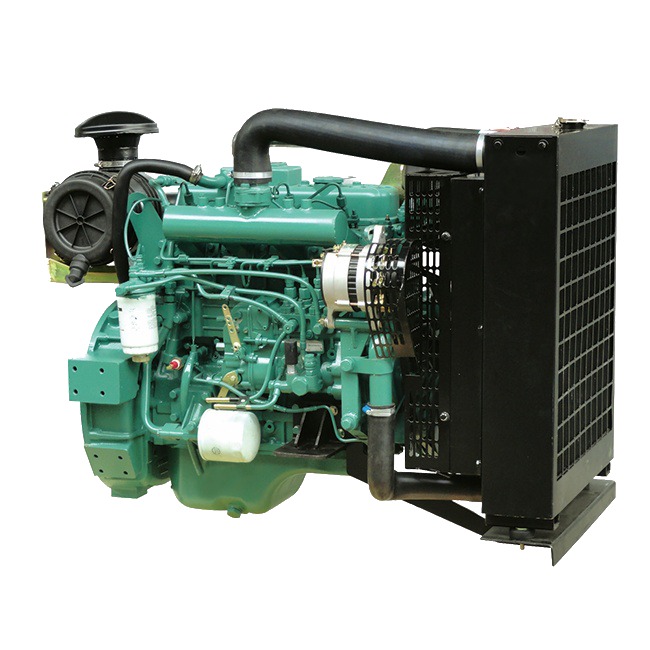

Motor de grupo electrógeno
Rated speed: 1500rpm
| Engine model | 4DX21-45D | 4DX22-50D | 4DX23-65D |
| Type | 4-cylinder 4-stroke | ||
| Air intake type | Natural | Turbocharged | Turbo& intercooling |
| Cooling mode | Water cooling | ||
| Governor mode | Mechanical& electronic | ||
| Bore×Stroke(mm） | 102×118 | ||
| Compression ratio | 17:1 | ||
| Rated speed(rpm) | 1500 | ||
| Displacement(L) | 3.86 | ||
| Rated power(without fan)(kW) | 33 | 37 | 48 |
| Standby power(without fan)(kW) | 36 | 41 | 53 |
| Fuel consumption(g/kWh) | 230 | 220 | 215 |
| Oil consumption(L/h) | 0.06 | 0.05 | 0.05 |
| Steady state speed regulation(%) | ≤5 | ≤5 | ≤5 |
| Oil capacity including filter(L) | 12.5 | 13 | 13 |
| Emission compliant | StageⅡ | ||
| The flywheel shell interface | SAE3 | ||
| Flywheel for 11.5″flexible coupling | |||
| Dry weight of base(kg) | 350 | 380 | 380 |
| Dry weight of Gen Pac(kg) | 375 | 405 | 410 |
| Overall dimension(base)(mm) | 810×680×800 | 810×700×850 | |
| Overall dimension(G.P)(mm) | 1155×680×835 | 1480×705×900 | |
| Fan consumption（kW） | 2 | 2.5 | 3 |
| 27℃ air consumption（m3/min） | 2.6 | 3.2 | 3.9 |
| Heat rejection of exhaust（kW） | 34.5 | 36.4 | 43.5 |
| Exhaust gas temperature after turbine（℃） | 580 | 480 | 480 |
| Exhaust gas flow（m3/min） | 8.3 | 8.4 | 10.4 |
| Heat rejection from engine（kW） | 2 | 2.6 | 3.3 |
| Heat rejection of coolant（kW） | 21.5 | 24.1 | 29 |
| Base configuration | Standard configuration(add on the base) | ||
| Engine with fan | Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe | ||
| Alternator 35A 28V Starter motor 4.5kW 24V | Cooling system: Radiator with connecting pipes; Fan guard; Belt guard | ||
Rated speed: 1800rpm
| Engine model | 4DX21-53D | 4DX22-60D | 4DX23-82D |
| Type | 4-cylinder 4-stroke | ||
| Air intake type | Natural | Turbocharged | Turbocharged& intercooling |
| Cooling mode | Water cooling | ||
| Governor mode | Mechanical or electronic | ||
| Bore×Stroke(mm） | 102×118 | ||
| Compression ratio | 17:1 | ||
| Rated speed(rpm) | 1800 | ||
| Displacement(L) | 3.86 | ||
| Rated power(without fan)(kW) | 39 | 45 | 60 |
| Standby power(without fan)(kW) | 43 | 50 | 66 |
| Fuel consumption(g/kWh) | 230 | 220 | 215 |
| Oil consumption(L/h) | 0.06 | 0.05 | 0.05 |
| Steady state speed regulation(%) | ≤5 or ≤3 | ||
| Oil capacity including filter(L) | 12.5 | 13 | 13 |
| Emission compliant | StageⅡ | ||
| The flywheel shell interface | SAE3 | ||
| Flywheel for 11.5″flexible coupling | |||
| Dry weight of base(kg) | 350 | 380 | 380 |
| Dry weight of Gen Pac(kg) | 375 | 405 | 410 |
| Fan consumption（kW） | 2.2 | 2.5 | 3 |
| Base configuration | Standard configuration(add on the base) | ||
| Engine with fan | Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe | ||
| Alternator 35A 28V Starter motor 4.5kW 24V | Cooling system: Radiator with connecting pipes; Fan guard; Belt guard | ||
