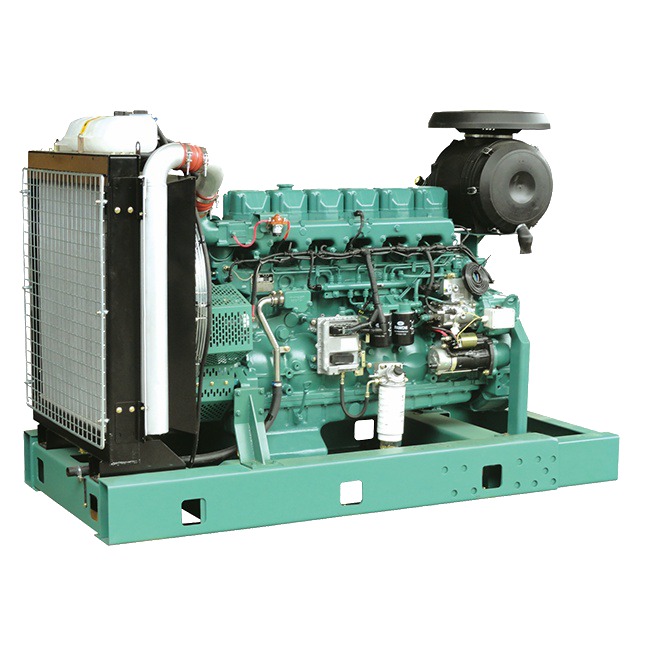

Motor de grupo electrógeno
Rated speed: 1500rpm
| Engine model | CA6DN1J-45D | CA6DN1-45D |
| Type | 6-cylinder 4-stroke | |
| Air intake type | Turbocharged& intercooling | |
| Cooling mode | Water cooling | |
| Governor mode | Electron | ECU |
| Bore×Stroke(mm） | 131×155 | |
| Compression ratio | 18∶1 | |
| Rated speed(rpm) | 1500 | |
| Displacement(L) | 12.53 | |
| Rated power(without fan)(kW) | 332 | |
| Standby power(without fan)(kW) | 365 | |
| Fuel consumption(g/kWh) | 195 | 191 |
| Oil consumption(L/h) | 0.06 | |
| Steady state speed regulation(%) | ≤3 | ≤1 |
| Oil capacity including filter(L) | 42 | |
| Emission compliant | StageⅡ | EuroⅢ |
| The flywheel shell interface | SAE1 | |
| Flywheel for 14″flexible coupling | ||
| Dry weight of base(kg) | 1230 | |
| Dry weight of Gen Pac(kg) | 1495 | |
| Overall dimension（G.P）(mm) | 2300×1120×1580 | |
| Fan consumption（kW） | 11 | |
| 27℃ air consumption（m3/min） | 22.7 | |
| Heat rejection of exhaust（kW） | 240 | |
| Exhaust gas temperature after turbine（℃） | 470 | |
| Exhaust gas flow（m3/min） | 64.5 | |
| Heat rejection from engine（kW） | 20 | |
| Heat rejection of coolant（kW） | 149 | |
| Base configuration | Standard configuration(add on the base) | |
| Engine with fan | Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe | |
| Alternator 75A 28V | Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard | |
| Starter motor 7.5KW 24V | Extendable base frame; Manual oil drain pump | |
Rated speed: 1800rpm
| Engine model | CA6DM2-42D | CA6DN1-46D | CA6DM2J-42D | CA6DN1J-46D |
| Type | 6-cylinder 4-strock | |||
| Air intake type | Turbocharged & intercooling | |||
| Cooling mode | Water cooling | |||
| Governor mode | ECU | Electronic | ||
| Bore×Stroke(mm） | 123×155 | 131×155 | 123×155 | 131×155 |
| Compression ratio | 18:1 | |||
| Rated speed(rpm) | 1800 | |||
| Displacement(L) | 11.05 | 12.53 | 11.05 | 12.53 |
| Rated power(without fan)(kW) | 305 | 338 | 305 | 338 |
| Standby power(without fan)(kW) | 336 | 369 | 336 | 369 |
| Fuel consumption(g/kWh) | 189 | 195 | ||
| Oil consumption(L/h) | 0.06 | |||
| Steady state speed regulation(%) | ≤1 | ≤3 | ||
| Oil capacity including filter(L) | 38 | |||
| Emission compliant | EuroⅢ | StageⅡ | ||
| The flywheel shell interface | SAE1 | |||
| Flywheel for 14″flexible coupling | ||||
| Dry weight of base(kg) | 1050 | 1230 | 1050 | 1230 |
| Dry weight of Gen Pac(kg) | 1435 | 1495 | 1435 | 1495 |
| Fan consumption（kW） | 12 | |||
| Base configuration | Standard configuration(add on the base) | |||
| Engine with fan | Intake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe | |||
| Alternator 75A 28V | Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard | |||
| Starter motor 7.5kW 24V | Extendable base frame; Manual oil drain pump | |||
